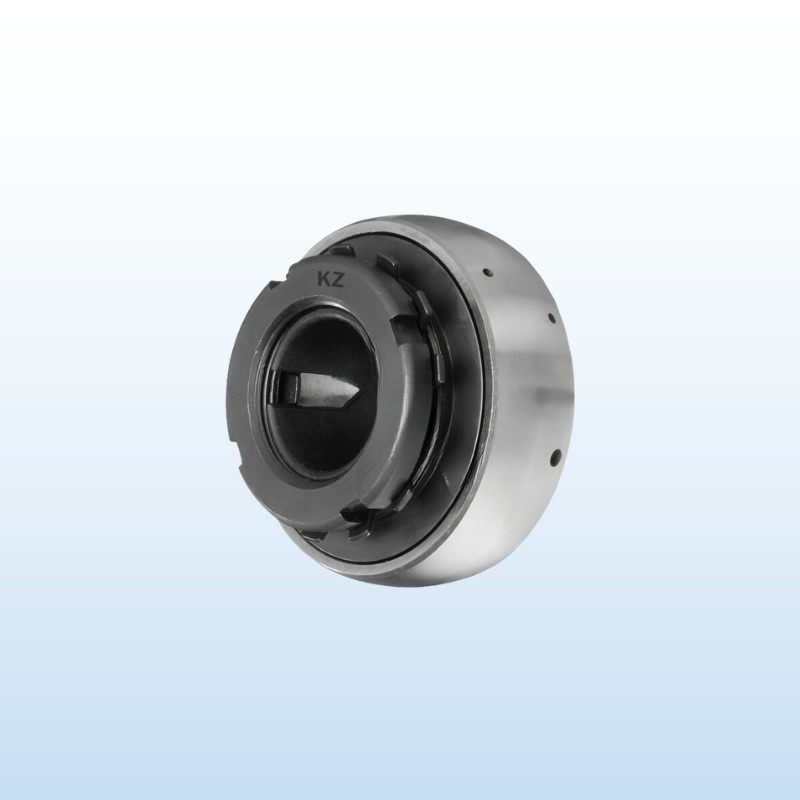

Agriculture Ball bearing with Adapter sleeves (harrow disc)

The adapter sleeve ensures a secure fit between the bearing and the shaft, accommodating the harsh conditions of soil cultivation. These bearings are essential for smooth operation and durability in disc harrows and similar machinery.

Agriculture bearings with adapter sleeves for harrow discs are used in tillage equipment, specifically in disc harrows. These bearings are placed in the disc assembly, where they support the rotation of the harrow discs, ensuring smooth operation and durability during soil cultivation and preparation. They help maintain alignment and reduce friction, allowing the discs to cut through soil effectively.

KZ Series: 1680204, 1680205, 1680206, 1680207

Category: Agriculture Ball bearing with Adapter sleeves (harrow disc)/ Agriculture Bearing

Quality: ABEC 1, ABEC 2.

Application and industry: disc harrows, seeders, harvesters, and rice transplanters.

Send Query WhatsApp Us
Bearing Number Inner Diameter (d) MM Outer Diameter (D) MM Width (B) MM Width C Weight (KG)
1680204 20 52 29 16 0.23
1680205 25 62 31 18 0.34
1680206 30 72 35 20 0.48
1680207 35 80 36 21 0.617
1680208 40 85 39 21 0.655
1680209 50 90 42 32 0.748
1680210 50 100 46 23 1.16
380708 40 85 35 23 0.69
